INDEX:

I ) WHY DOCKER?

II) WHAT IS DOCKER?

III) DOCKER TERMILOGIES:

IV) INSTALLATION OF DOCKER:

V) USE OF DOCKER FOR DISTRIBUTED TESTING IN JMETER (MASTER AND SLAVE):

VI) DOCKER SETUP FOR JMETER:

Run the test using Jmeter Master container only (Non distributed Mode) using Master container on same aws machine
Run the test using Jmeter Master and slave container on same aws machine (Distributed Mode)

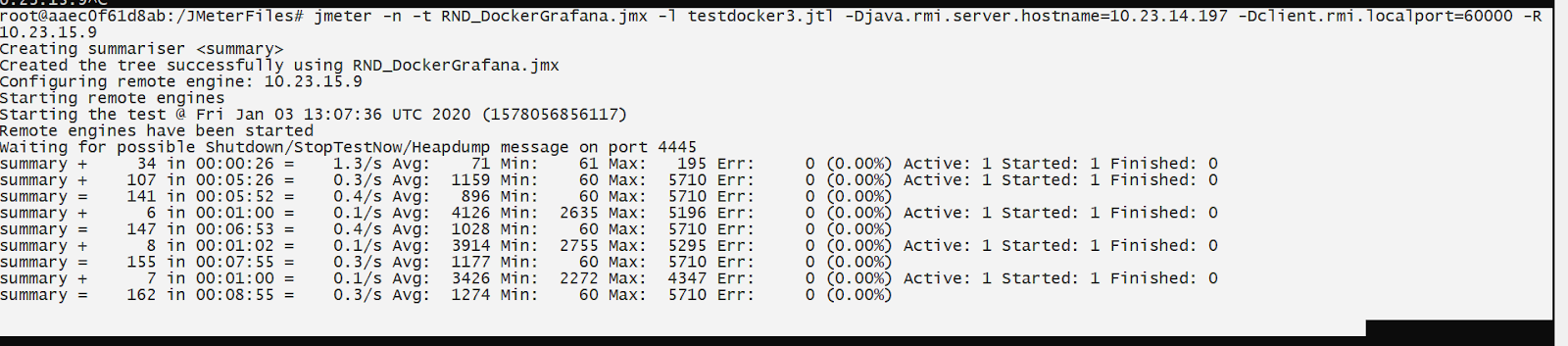

Distributed testing on different AWS machines (Master and Slave on 2 different aws machines)

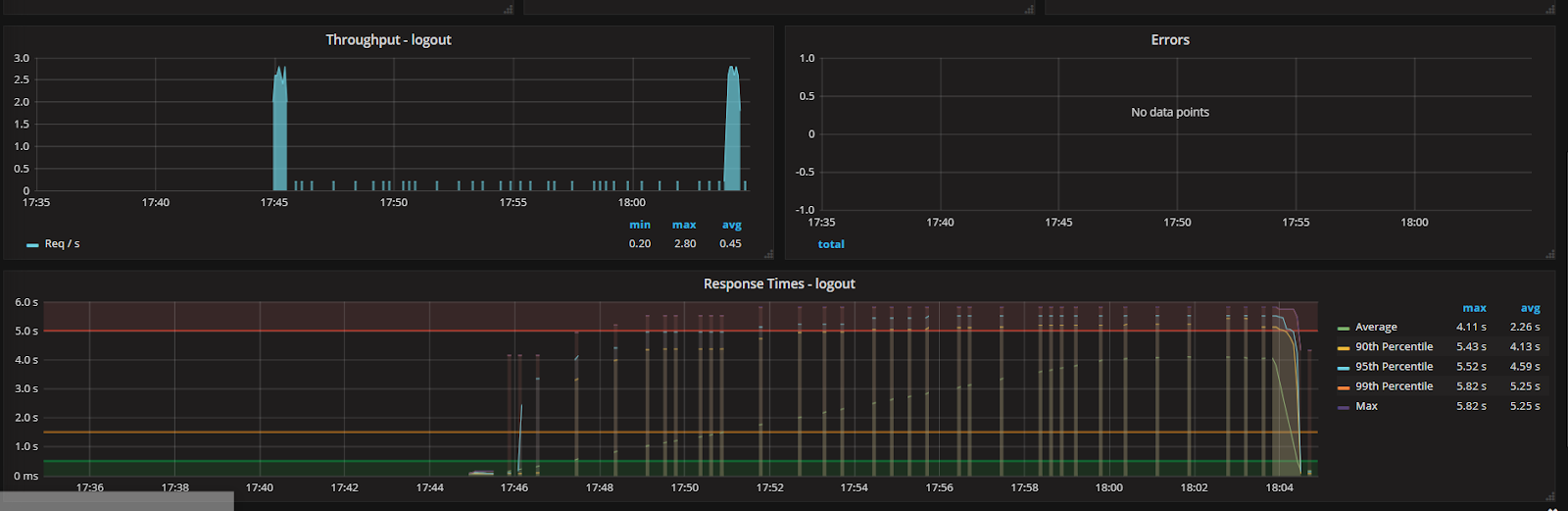

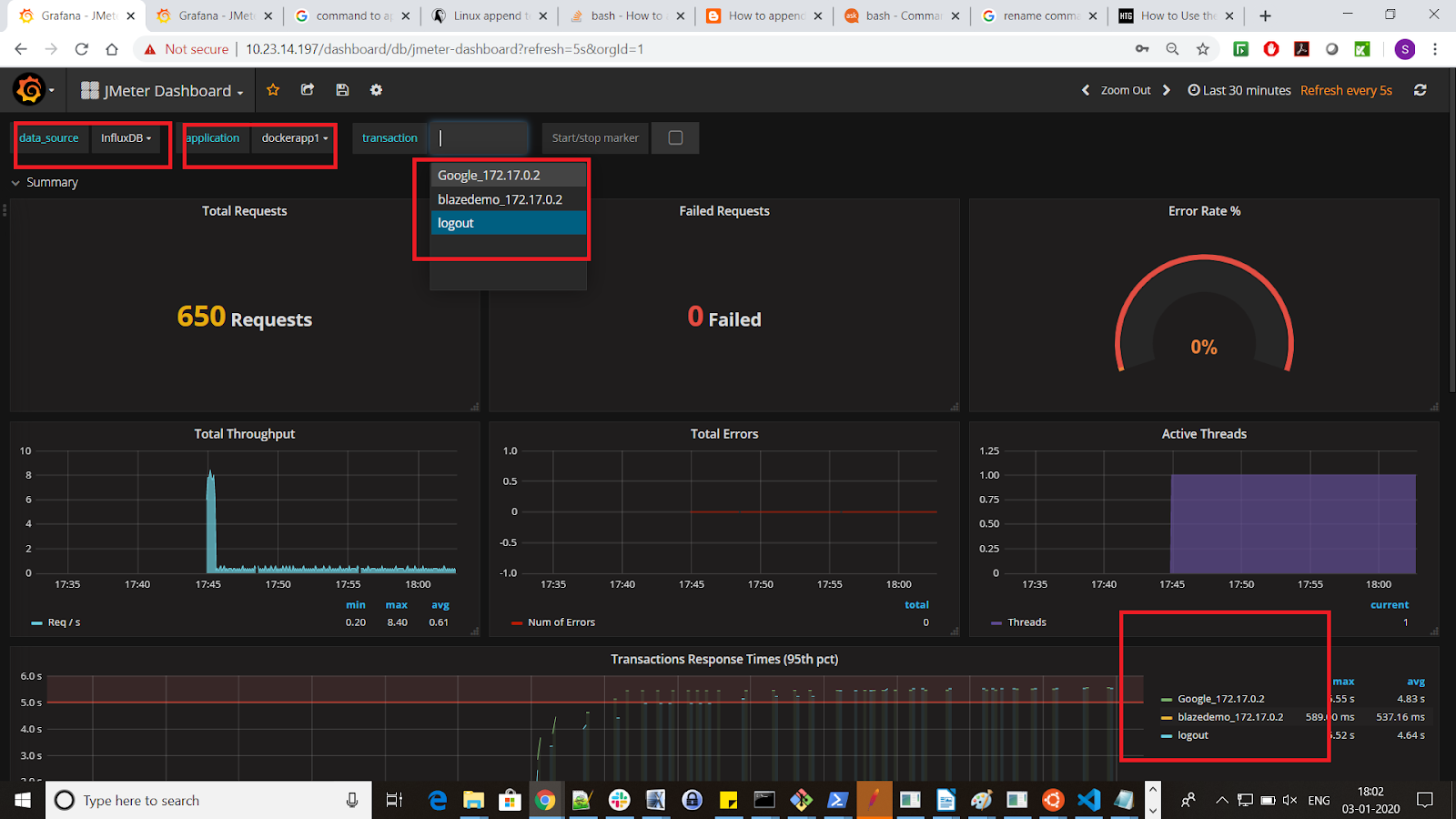

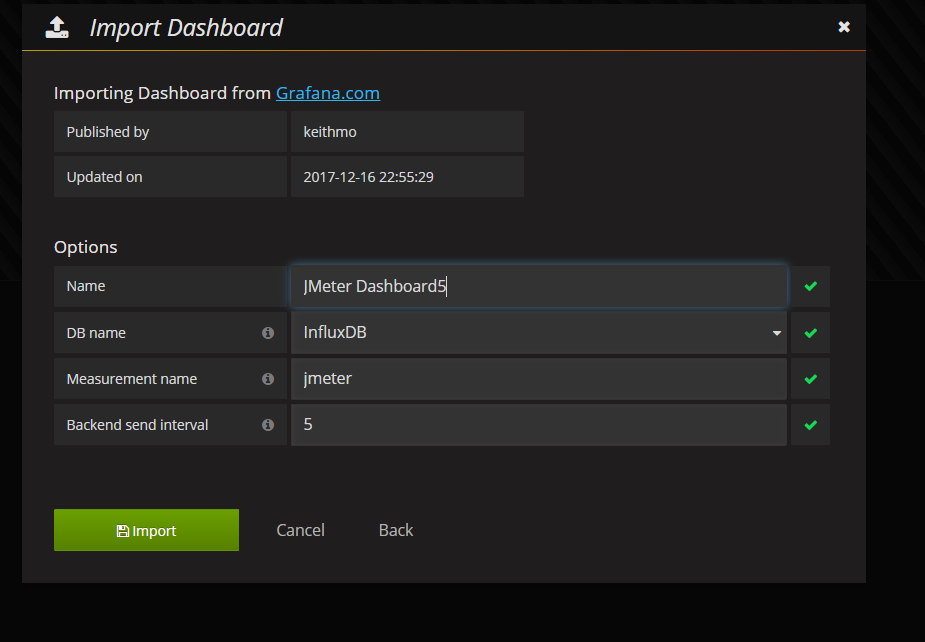

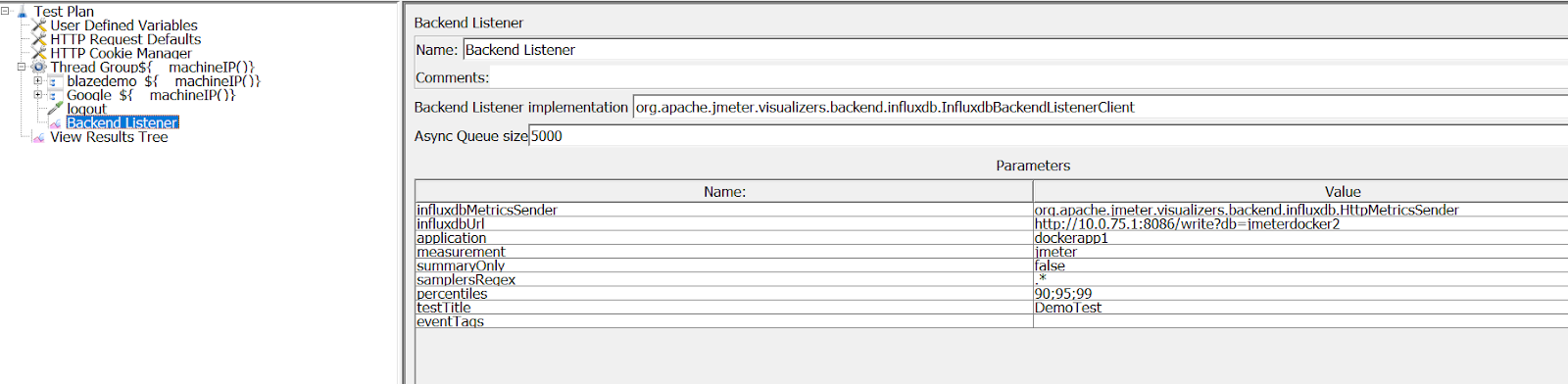

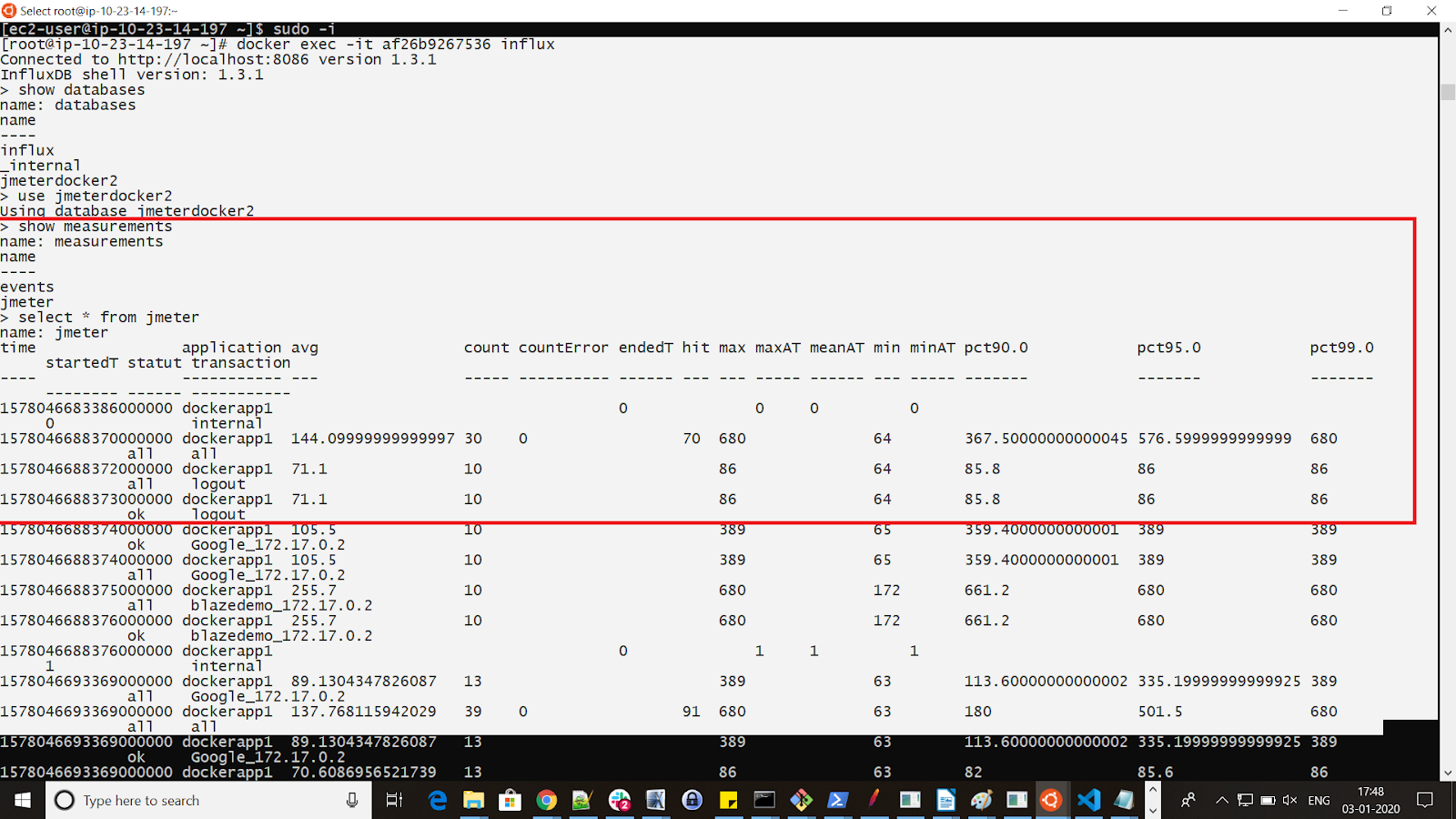

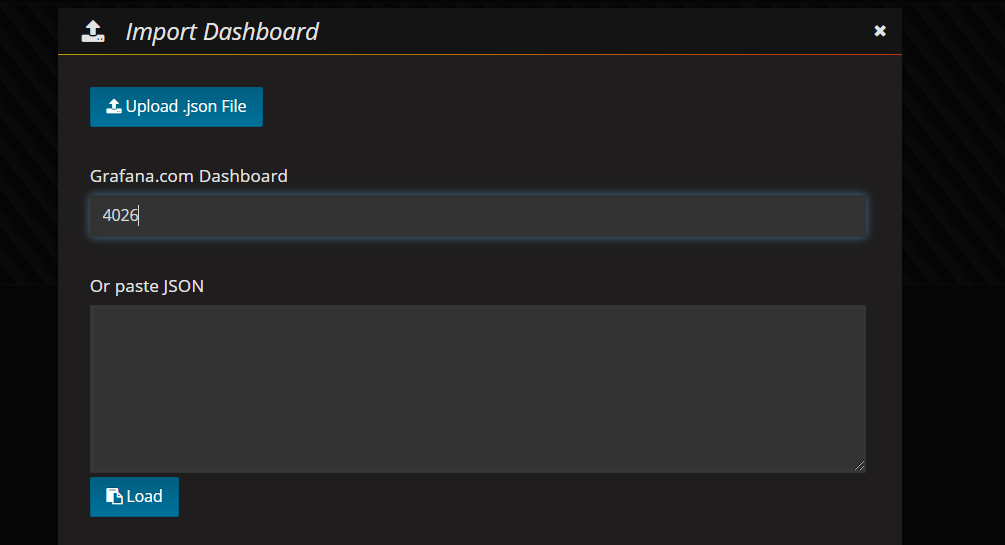

VII) INFLUXDB and GRAFANA SETUP ON MASTER SLAVE MACHINE FOR ANALYSIS AND MONITORING JMETER TEST

VIII) MISCELLANEOUS

1. Why Docker:

Docker is a simple way to deploy and run software applications.
Docker provides you with lightweight isolated containers that behave like a virtual machine, but at the same time share the OS where they have been run

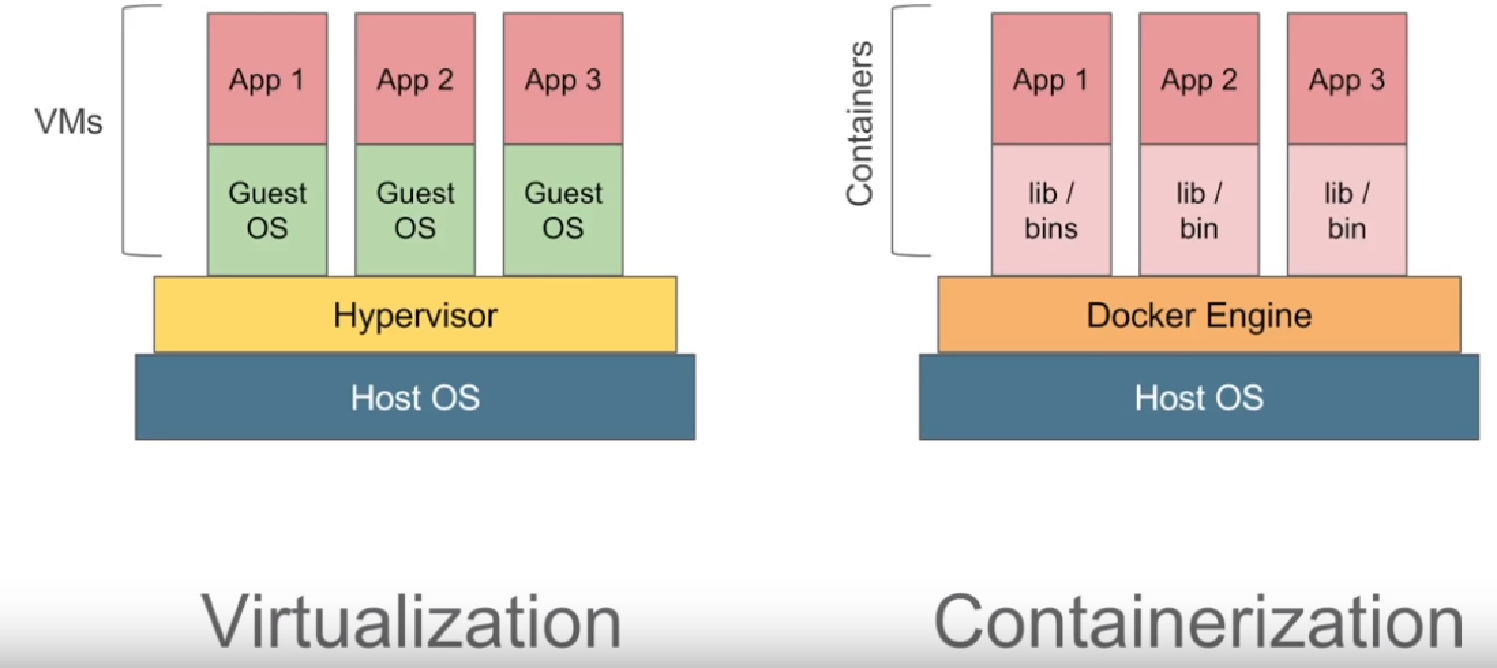

In comparison with virtual machines, Docker allows you to spin up lots of isolated dockers without any additional resources cost.

2. WHAT IS DOCKER?

Docker is a bit like a virtual machine. But unlike a virtual machine, rather than creating a whole virtual operating system, Docker allows applications to use the same Linux kernel.
Efficient utilization of hardware system along with Configuration and settings are easy in docker.
Build shift and deploy docker image anywhere concept is used.

3. DOCKER TERMILOGIES:

Docker Hub: Docker image repository as docker hub
Docker Image: Docker image is a group of layers.

(For Eg while running a test we will require multiple layers to execute in sequence like 1st layer installation of JDK,2nd Layer installation of JMeter version,3rd layer environment setup).
To ease installation and configuration setup we use a docker image.

Refer: qautomation.blog/2019/05/07/top-docker-images-for-performance-testers/

Docker Container: Running of the image is called docker container
Docker File : A text document with commands necessary to assemble an image. When using Docker it’s not mandatory to handle a Dockerfile, because you can use the image directly if you have one.
Docker engine - A sort of minimalistic operating system where virtualized applications are executed.

4. INSTALLATION OF DOCKER:

hub.docker.com/editions/community/docker-ce-desktop-windows

5. USE OF DOCKER FOR DISTRIBUTED TESTING IN JMETER (MASTER AND SLAVE):

What Docker has to offer for Apache JMeter?

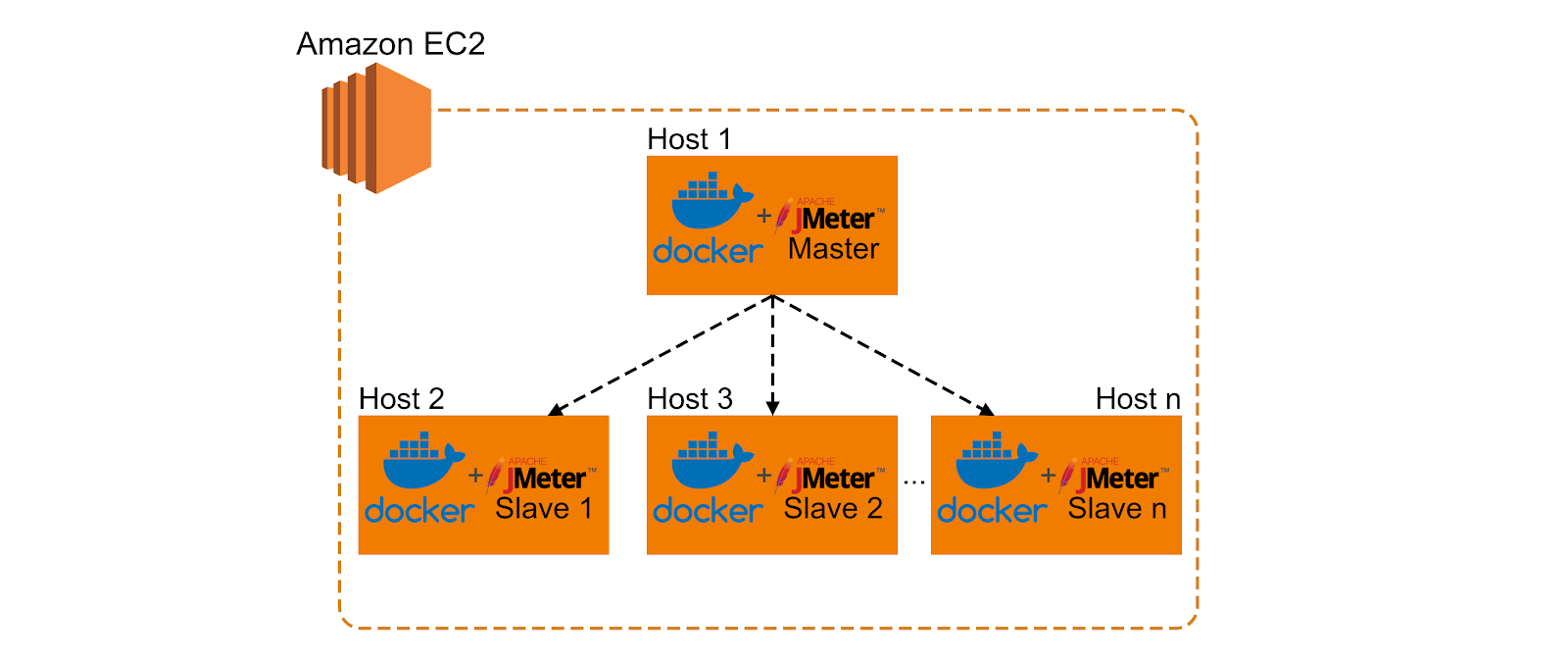

To do distributed load testing – we need 1 master & we need N number of slaves to generate a huge load.
With every new installation of Apache JMeter, you need to download/install JMeter on every new node participating in Distributed Load Testing. Installing JMeter requires dependencies to be installed first like JAVA,
With Docker, it is just a matter of 1 Docker Compose file and a one-liner command to get the entire infrastructure ready.
Each and every JMeter slave machine needs to have a specific version of Java and JMeter installed.

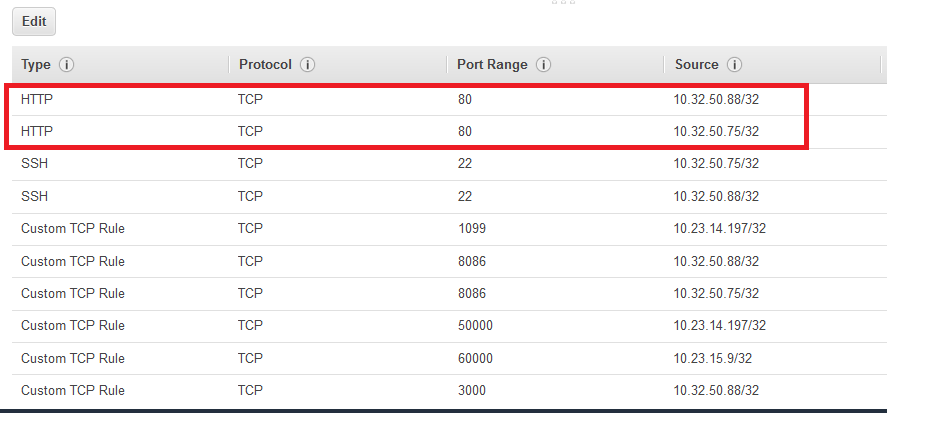

Specific ports should be opened and the JMeter server should be running, ready, and waiting for the master to send the instruction.
Setting up a few machines manually might look easy. What if we have to do this for 50, 100, 1000 machines? Also, imagine what will happen if we need to upgrade JMeter versions in all the machines in the future!! That is where docker comes into the picture.
We basically set up the whole infrastructure for JMeter distributed testing in a file called Dockerfile.

VI) DOCKER SETUP FOR JMETER:

#Pre condition

Aws EC2 instance machine which needs to be used for Master and Slave in distributed testing
Docker must be installed in the respective server aws machine
Git Bash should be installed in local machine to connect server aws machines

Run tests on one server(Master-Slave on same machine IP different)

STEPS:

1.We have created 2 EC2 instances (virtual box in the cloud) in aws:

Master:10.23.14.197 Slave:10.23.15.9

NOTE:

[root@ip-10-23-14-197 ~]# =>Server root directory where docker container is run.

[ec2-user@ip-10-23-14-197 ~]$ =>Server User to (login)

root@ee36aff04836=>Docker Root container (where we run JMeter commands)

2.Copy private key file from downloads to the current directory. Then run below the “ssh” command to login.

(Dist-test.pem is a private key file generated while creating machines on ec2 (virtual box) in aws.)

root@DEVOPS-LAP-07:/mnt/c/Users/ssonawane/Downloads# cp dist-test.pem ~/

3. “ssh” command will give access to aws ec2 instance

root@DEVOPS-LAP-07:~# ssh -i dist-test.pem ec2-user@10.23.14.197

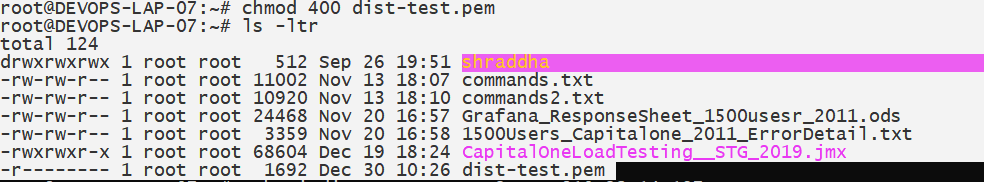

4.To remove the above warning “UNPROTECTED PRIVATE KEY FILE” change permissions of “dist-test.pem” private key file using chmod below command

root@DEVOPS-LAP-07:~# chmod 400 dist-test.pem

5.Re-run ssh command and now our instance is running.

root@DEVOPS-LAP-07:~# ssh -i dist-test.pem ec2-user@10.23.14.197

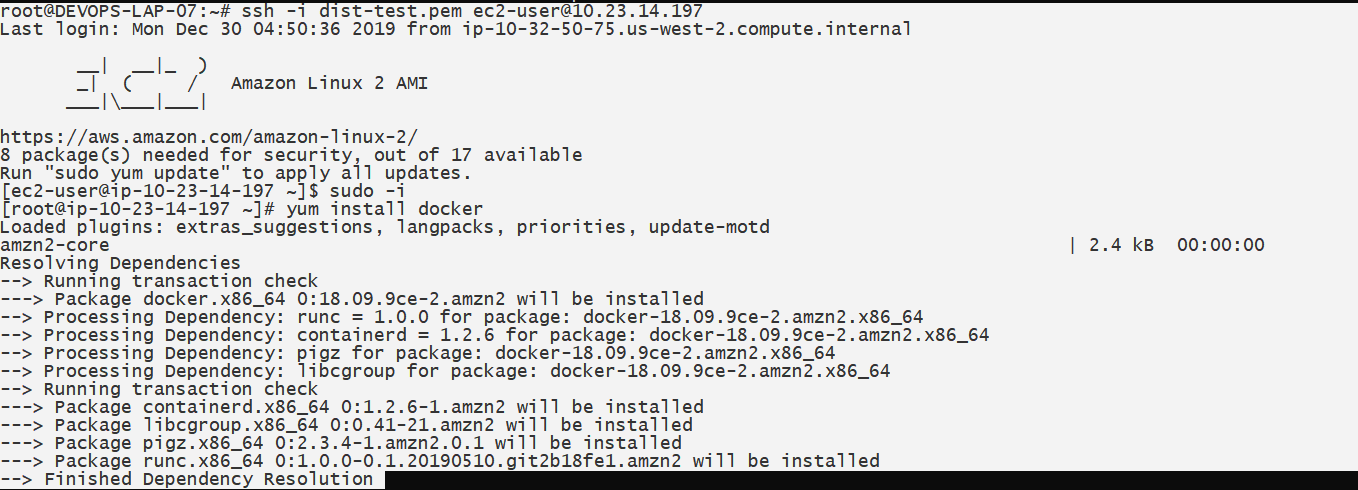

6.Install Docker on aws instances using commands

[root@ip-10-23-14-197 ~]# yum install docker

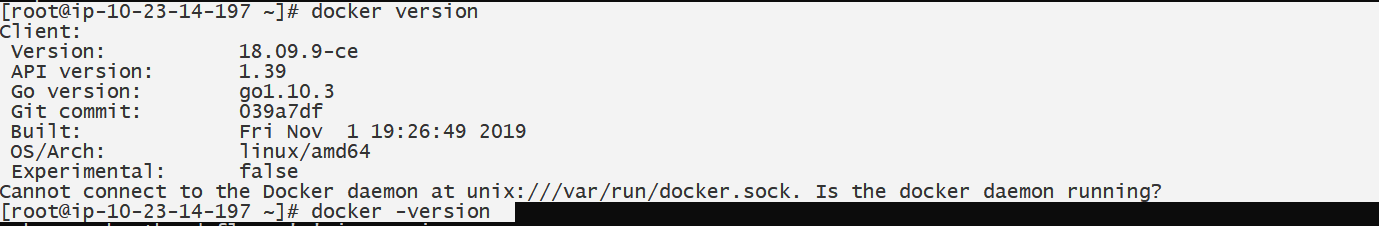

7.Check Docker version and verify docker installation

[root@ip-10-23-14-197 ~]# docker version

8.We will receive the below error message after running the command Docker version

“Cannot connect to the Docker daemon at unix:///var/run/docker.sock. Is the docker daemon running?”

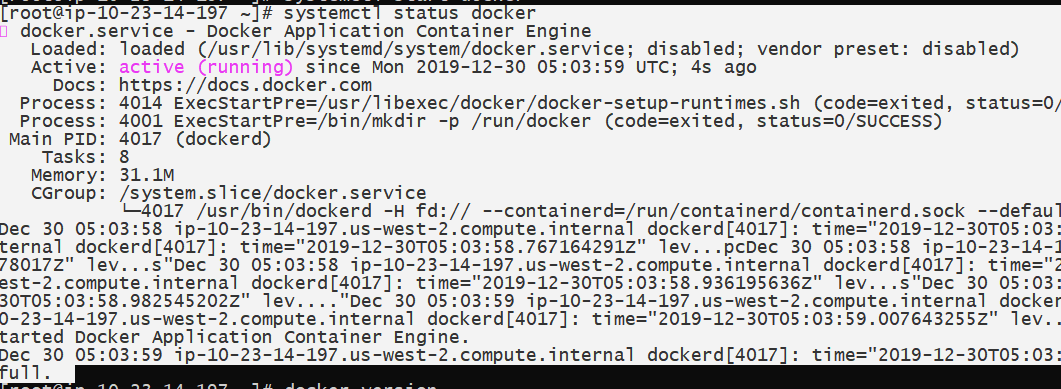

9.To start docker and remove above error run below systemctl commands (Start ) and check status

[root@ip-10-23-14-197 ~]# systemctl start docker

[root@ip-10-23-14-197 ~]# systemctl status docker

10.Copy “testdocker.jmx” script from local to root directory of server machine

root@DEVOPS-LAP-07:~# scp -i dist-test.pem /mnt/c/Users/ssonawane/Desktop/Jmeter/Final/apache-jmeter-5.1.1/apache-jmeter-5.1.1/bin/testdocker.jmx ec2-user@10.23.14.197:~/

testdocker.jmx 100% 14KB 50.6KB/s 00:00

11.To Switch to root machine of ec2 machine use command “sudo -i”

[ec2-user@ip-10-23-14-197 ~]$ sudo -i

12.To Obtain a Docker image there are 2 ways :

First is to create a docker image from the docker file
The second is to pull a docker image from docker hub

13.To pull inbuilt JMeter docker images(Master image,slave image,Jmeter Base image) from docker hub

[root@ip-10-23-14-197 ~]# docker pull mnazim1541/jmbase

[root@ip-10-23-14-197 ~]# docker pull mnazim1541/jmmaster

[root@ip-10-23-14-197 ~]# docker pull mnazim1541/jmslave

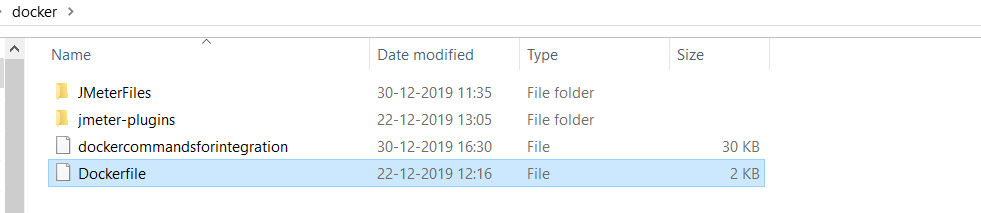

[ Note: To Create a docker image use the below commands:

Change to the directory where the docker file resides.
Filename should be “Dockerfile”.

Command to create docker image:

docker build -t <Name of Image> .

Eg:docker build -t JmeterBase . ]

13.Create Master & Slaves Containers on the Same Machine.

Run the below commands to create the containers by running the respective images. (Run n number of times below command to generate n slaves)

[root@ip-10-23-14-197 ~]# docker run -dit –name master mnazim1541/jmmaster /bin/bash

[root@ip-10-23-14-197 ~]# docker run -dit --name slave01 mnazim1541/jmslave /bin/bash

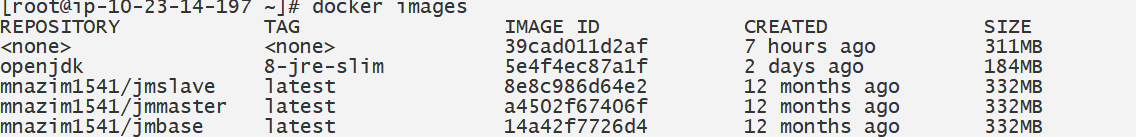

14.To check docker images run the command:

[root@ip-10-23-14-197 ~]# docker images

15.Run Docker ps command to list all running containers

[root@ip-10-23-14-197 ~]# docker ps -a

16.Run the below command to get the list of ip addresses for these containers.(Use GIT Bash to execute below command)(IP ‘s will be required for running slave machine)

[root@ip-10-23-14-197 ~]# docker inspect --format '{{ .Name }} => {{ .NetworkSettings.IPAddress }}' $(docker ps -a -q)

17. Go inside the Master container with the below command and we can see all the files after pulling image on machine

[root@ip-10-23-14-197 ~]# docker exec -it master /bin/bash

root@ee36aff04836:/# ls

JMeterFiles bin boot dev docker-java-home etc home JMeter lib lib64 media mnt opt proc root run sbin srv sys mp usr var

18.**********************Copy Scripts & jmeter files to container****************

To move the script from local machine to aws machine run below command (using private key file “dist-test.pem” of aws ec2 instance.

root@DEVOPS-LAP-07:~# scp -i dist-test.pem /mnt/c/Users/ssonawane/Desktop/Jmeter/Final/apache-jmeter-5.1.1/apache-jmeter-5.1.1/bin/Dockerblazedemo.jmx ec2-user@10.23.14.197:~/

Dockerblazedemo.jmx 100% 14KB 50.9KB/s 00:00

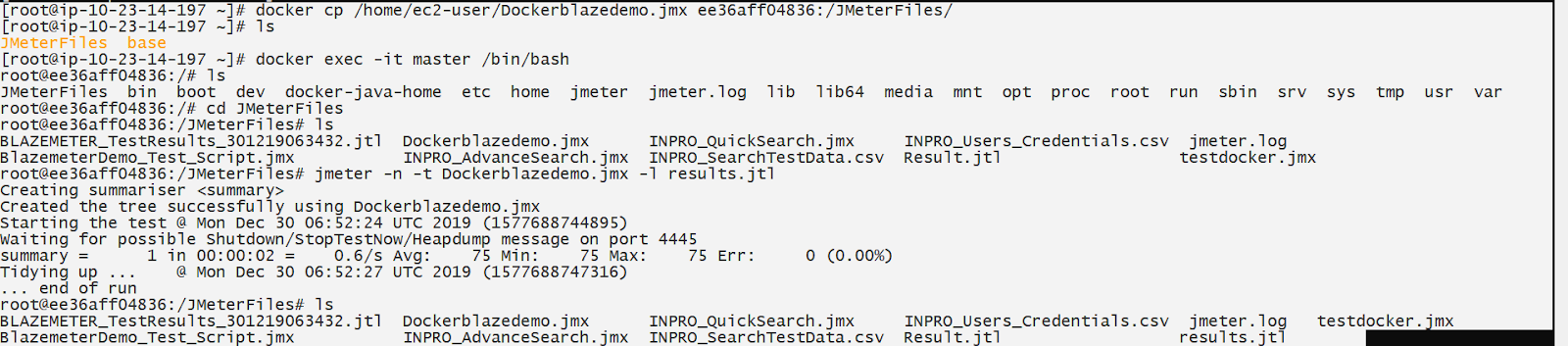

Once the script is moved from local to aws machine.Copy script in docker container JmeterFiles folder

[root@ip-10-23-14-197 ~]# docker cp /home/ec2-user/Dockerblazedemo.jmx ee36aff04836:/JMeterFiles/

[root@ip-10-23-14-197 ~]# ls

JMeterFiles base

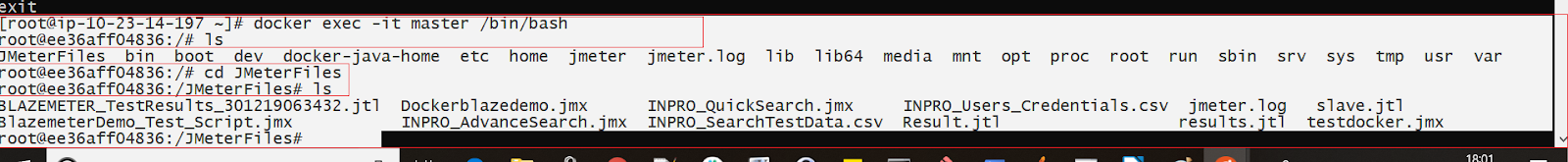

19.Run docker exec command to check script is copied to the container

[root@ip-10-23-14-197 ~]# docker exec -it master /bin/bash

JmeterFiles

root@ee36aff04836:/# cd JmeterFiles

root@ee36aff04836:/JMeterFiles# ls

BLAZEMETER_TestResults_301219063432.jtl Dockerblazedemo.jmx INPRO_QuickSearch.jmx INPRO_Users_Credentials.csv jmeter.log

BlazemeterDemo_Test_Script.jmx INPRO_AdvanceSearch.jmx INPRO_SearchTestData.csv Result.jtl testdocker.jmx

SCENARIO 1:

20.Now we are ready and start jmeter test with below command (Non distributed test):

************** Run the test on Jmeter Master only (Non distributed Mode)***************

root@ee36aff04836:/JMeterFiles# jmeter -n -t Dockerblazedemo.jmx -l results.jtl

Creating summariser <summary>

Created the tree successfully using Dockerblazedemo.jmx

Starting the test @ Mon Dec 30 06:52:24 UTC 2019 (1577688744895)

Waiting for possible Shutdown/StopTestNow/Heapdump message on port 4445

summary = 1 in 00:00:02 = 0.6/s Avg: 75 Min: 75 Max: 75 Err: 0 (0.00%)

Tidying up ... @ Mon Dec 30 06:52:27 UTC 2019 (1577688747316)

... end of run

SCENARIO 2:

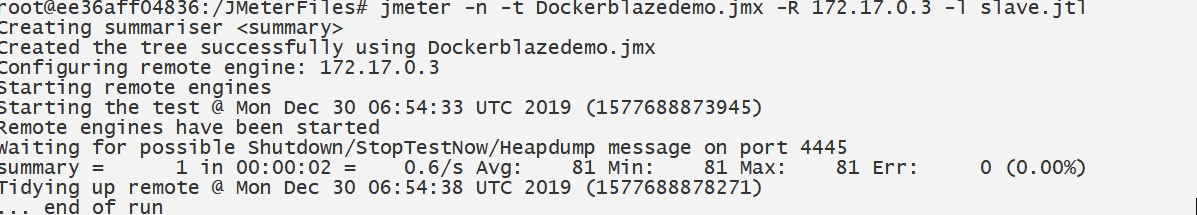

21..Run the below command to run the test in distributed using docker containers. (Different IP addresses of all the slaves machine)

*********** Run the test on Jmeter Master and slave on same aws machine (Distributed Mode)******************

root@ee36aff04836:/JMeterFiles# jmeter -n -t Dockerblazedemo.jmx -R 172.17.0.3 -l slave.jtl

root@ee36aff04836:/JMeterFiles# jmeter -n -t Dockerblazedemo.jmx -R 172.17.0.3 -l TestResults1.jtl

Creating summariser <summary>

Created the tree successfully using Dockerblazedemo.jmx

Configuring remote engine: 172.17.0.3

Starting remote engines

Starting the test @ Mon Dec 30 13:50:14 UTC 2019 (1577713814354)

Remote engines have been started

Waiting for possible Shutdown/StopTestNow/Heapdump message on port 4445

summary = 1 in 00:00:01 = 1.0/s Avg: 77 Min: 77 Max: 77 Err: 0 (0.00%)

Tidying up remote @ Mon Dec 30 13:50:16 UTC 2019 (1577713816993)

... end of run

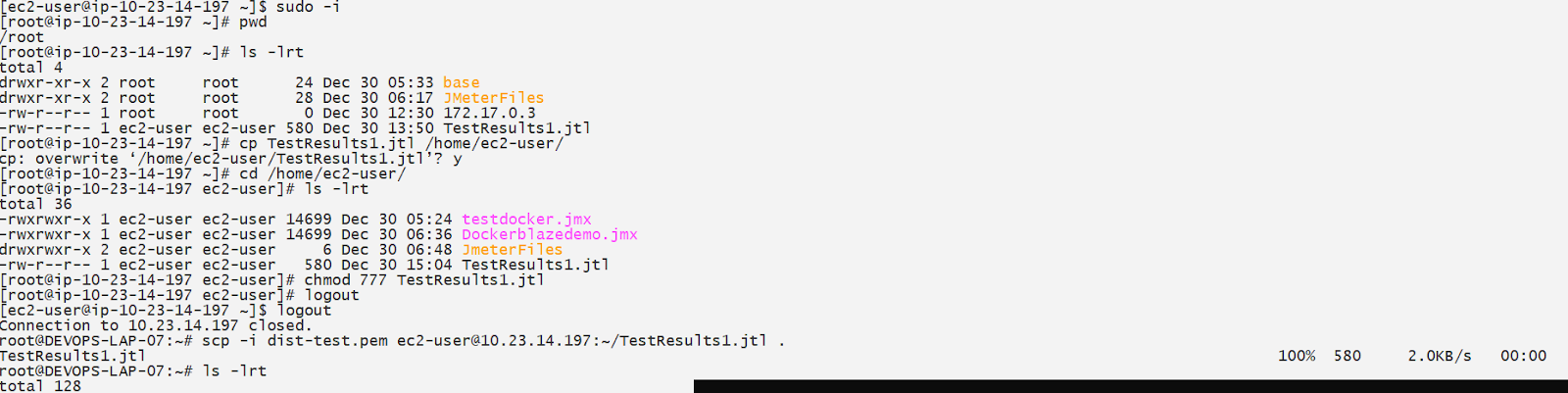

22.********** Copy the generated result file from container to local system**************

[root@ip-10-23-14-197 ~]# pwd

/root

[root@ip-10-23-14-197 ~]#

[root@ip-10-23-14-197 ~]# ls -lrt

total 4

drwxr-xr-x 2 root root 24 Dec 30 05:33 base

drwxr-xr-x 2 root root 28 Dec 30 06:17 JMeterFiles

-rw-r--r-- 1 root root 0 Dec 30 12:30 172.17.0.3

-rw-r--r-- 1 ec2-user ec2-user 580 Dec 30 13:50 TestResults1.jtl

[root@ip-10-23-14-197 ~]# pwd

/root

[root@ip-10-23-14-197 ~]# logout

[ec2-user@ip-10-23-14-197 ~]$ ls -lrt /root

ls: cannot open directory /root: Permission denied

[ec2-user@ip-10-23-14-197 ~]$ sudo -i

[root@ip-10-23-14-197 ~]# pwd

/root

[root@ip-10-23-14-197 ~]# ls -lrt

total 4

drwxr-xr-x 2 root root 24 Dec 30 05:33 base

drwxr-xr-x 2 root root 28 Dec 30 06:17 JMeterFiles

-rw-r--r-- 1 root root 0 Dec 30 12:30 172.17.0.3

-rw-r--r-- 1 ec2-user ec2-user 580 Dec 30 13:50 TestResults1.jtl

[root@ip-10-23-14-197 ~]# cp TestResults1.jtl /home/ec2-user/

cp: overwrite ‘/home/ec2-user/TestResults1.jtl’? y

[root@ip-10-23-14-197 ~]# cd /home/ec2-user/

[root@ip-10-23-14-197 ec2-user]# ls -lrt

total 36

-rwxrwxr-x 1 ec2-user ec2-user 14699 Dec 30 05:24 testdocker.jmx

-rwxrwxr-x 1 ec2-user ec2-user 14699 Dec 30 06:36 Dockerblazedemo.jmx

drwxrwxr-x 2 ec2-user ec2-user 6 Dec 30 06:48 JmeterFiles

-rw-r--r-- 1 ec2-user ec2-user 580 Dec 30 15:04 TestResults1.jtl

[root@ip-10-23-14-197 ec2-user]# chmod 777 TestResults1.jtl

[root@ip-10-23-14-197 ec2-user]# logout

[ec2-user@ip-10-23-14-197 ~]$ logout

Connection to 10.23.14.197 closed.

root@DEVOPS-LAP-07:~# 100% 580 2.0KB/s 00:00

root@DEVOPS-LAP-07:~# ls -lrt

total 128

drwxrwxrwx 1 root root 512 Sep 26 19:51 shraddha

-rw-rw-r-- 1 root root 11002 Nov 13 18:07 commands.txt

-rw-rw-r-- 1 root root 10920 Nov 13 18:10 commands2.txt

-rw-rw-r-- 1 root root 24468 Nov 20 16:57 Grafana_ResponseSheet_1500usesr_2011.ods

-rw-rw-r-- 1 root root 3359 Nov 20 16:58 1500Users_Capitalone_2011_ErrorDetail.txt

-rwxrwxr-x 1 root root 68604 Dec 19 18:24 CapitalOneLoadTesting__STG_2019.jmx

-r-------- 1 root root 1692 Dec 30 10:26 dist-test.pem

-rwxrwxrwx 1 root root 580 Dec 30 20:35 TestResults1.jtl

root@DEVOPS-LAP-07:~# cp TestResults1.jtl /mnt/c/Users/ssonawane/Desktop/

root@DEVOPS-LAP-07:~#

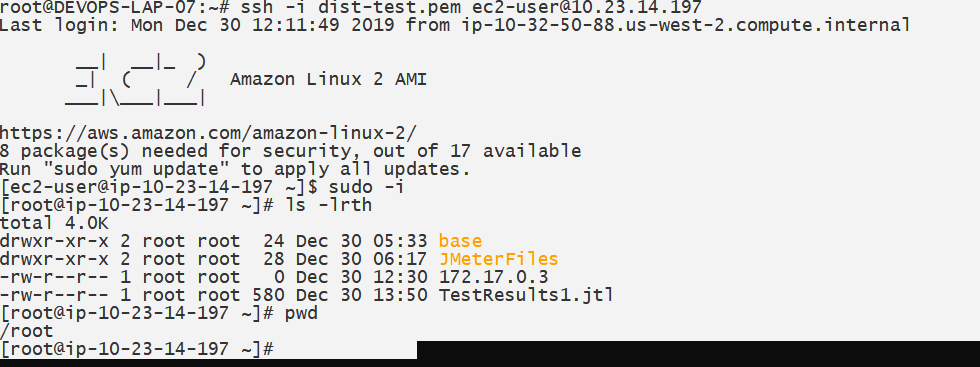

Step1:

root@DEVOPS-LAP-07:~# ssh -i dist-test.pem ec2-user@10.23.14.197

Last login: Mon Dec 30 15:16:01 2019 from ip-10-32-50-88.us-west-2.compute.internal

__| __|_ )

_| ( / Amazon Linux 2 AMI

___|\___|___|

https://aws.amazon.com/amazon-linux-2/

8 package(s) needed for security, out of 17 available

Run "sudo yum update" to apply all updates.

[ec2-user@ip-10-23-14-197 ~]$

Step2:

Check recent file with all permissions using ls -lrth:

[ec2-user@ip-10-23-14-197 ~]$ ls -lrth

total 36K

-rwxrwxr-x 1 ec2-user ec2-user 15K Dec 30 05:24 testdocker.jmx

-rwxrwxr-x 1 ec2-user ec2-user 15K Dec 30 06:36 Dockerblazedemo.jmx

drwxrwxr-x 2 ec2-user ec2-user 6 Dec 30 06:48 JmeterFiles

-rwxrwxrwx 1 ec2-user ec2-user 580 Dec 30 15:04 TestResults1.jtl

-rwxrwxrwx 1 ec2-user ec2-user 0 Dec 30 15:16 scripts.sh

-rw-rw-r-- 1 ec2-user ec2-user 0 Dec 30 15:24 Finaltext.txt

Step3:

Check current directory path

[ec2-user@ip-10-23-14-197 ~]$ pwd

/home/ec2-user

Step4:Since ec2 user have all access,change owner of file to ec2 user using chown

chmod 777 (give all permission to ec2)

[root@ip-10-23-14-197 ec2-user]# chmod 777 Finaltext.txt or chown ec2-user. Finaltext.txt

[root@ip-10-23-14-197 ec2-user]# ls -lhrt

total 36K

-rwxrwxr-x 1 ec2-user ec2-user 15K Dec 30 05:24 testdocker.jmx

-rwxrwxr-x 1 ec2-user ec2-user 15K Dec 30 06:36 Dockerblazedemo.jmx

drwxrwxr-x 2 ec2-user ec2-user 6 Dec 30 06:48 JmeterFiles

-rwxrwxrwx 1 ec2-user ec2-user 580 Dec 30 15:04 TestResults1.jtl

-rwxrwxrwx 1 ec2-user ec2-user 0 Dec 30 15:16 scripts.sh

-rwxrwxrwx 1 ec2-user ec2-user 0 Dec 30 15:42 Finaltext.txt

Step5:

Logout from ec2 and root directory of ec2

[root@ip-10-23-14-197 ec2-user]# logout

[ec2-user@ip-10-23-14-197 ~]$ logout

Step6:

Copy file from aws server to root of local machines

root@DEVOPS-LAP-07:~# scp -i dist-test.pem ec2-user@10.23.14.197:~/Finaltext.txt .

Finaltext.txt 100% 0 0.0KB/s 00:00

Step7:

Copy file from root of local machine to desktop

root@DEVOPS-LAP-07:~# cp Finaltext.txt /mnt/c/Users/ssonawane/Desktop

root@DEVOPS-LAP-07:~# ls -lrth

total 128K

drwxrwxrwx 1 root root 512 Sep 26 19:51 shraddha

-rw-rw-r-- 1 root root 11K Nov 13 18:07 commands.txt

-rw-rw-r-- 1 root root 11K Nov 13 18:10 commands2.txt

-rw-rw-r-- 1 root root 24K Nov 20 16:57 Grafana_ResponseSheet_1500usesr_2011.ods

-rw-rw-r-- 1 root root 3.3K Nov 20 16:58 1500Users_Capitalone_2011_ErrorDetail.txt

-rwxrwxr-x 1 root root 67K Dec 19 18:24 CapitalOneLoadTesting__STG_2019.jmx

-r-------- 1 root root 1.7K Dec 30 10:26 dist-test.pem

-rwxrwxrwx 1 root root 580 Dec 30 20:35 TestResults1.jtl

-rwxrwxrwx 1 root root 0 Dec 30 20:51 scripts.sh

-rwxrwxrwx 1 root root 0 Dec 30 21:18 Finaltext.txt

root@DEVOPS-LAP-07:~#

SCENARIO 3:

Distributed testing on different AWS machines:

Ref:https://hub.docker.com/r/thothbot/jmeter-master/

To execute test on different aws machines we need to first do port opening in aws console:

In AWS, we need to add below rules for port opening in below Master and Slave machines:

Master IP address:10.23.14.197/32

Slave IP Address: 10.23.15.9/32

First, we need to open ports from Master to connect slave:1099,50000

Then we need to open ports from Slave to connect master:60000

# Master node setup

1.# Login to a remote server

bjarwal@DEVOPS-LAP-05:~$ cd ssh-keys/

bjarwal@DEVOPS-LAP-05:~/ssh-keys$ ssh -i dist-test.pem ec2-user@10.23.14.197

Last login: Tue Dec 31 11:08:42 2019 from ip-10-32-50-88.us-west-2.compute.internal

__| __|_ )

_| ( / Amazon Linux 2 AMI

___|\___|___|

2.#Switch to the root user

[ec2-user@ip-10-23-15-9 ~]$ sudo -i

3.# Make directory

[root@ip-10-23-14-197~]# mkdir -p jmeter-master/JmeterFiles

4.# Now go to jmeter-master/JMeterFiles directory and copy your jmeter scripts

[root@ip- 10-23-14-197 ~]# cd jmeter-master/JmeterFiles/

5.#Copy script from local machine root to aws machine root-Master(10-23-14-197):

root@DEVOPS-LAP-07:~# scp -i dist-test.pem /mnt/c/users/ssonawane/Desktop/testdocker.jmx ec2-user@10.23.14.197:~/

testdocker.jmx 100% 14KB 50.8KB/s 00:00

6.#Check copied file on aws machine Master using “ls” command

[ec2-user@ip-10-23-14-197 ~]$ ls

Dockerblazedemo.jmx Finaltext.txt testdocker.jmx JmeterFiles TestResults1.jtl scripts.sh testdocker.jmx

7.#Now copy script from aws machine Master root to jmeter-master/JmeterFiles folder

[ec2-user@ip-10-23-14-197 ~]$ pwd

/home/ec2-user

[ec2-user@ip-10-23-14-197 ~]$ sudo -i

[root@ip-10-23-14-197 jmeter-master]# cd JMeterFiles

[root@ip-10-23-14-197 JMeterFiles]# cp -v /home/ec2-user/IntegrationDockerJmeter.jmx .

‘/home/ec2-user/IntegrationDockerJmeter.jmx’ -> ‘./IntegrationDockerJmeter.jmx’

[root@ip-10-23-14-197 JMeterFiles]# cp -v ../../JMeterFiles/testdocker.jmx .

‘../../JMeterFiles/testdocker.jmx’ -> ‘./testdocker.jmx’

8.#Change directory jmeter-master

cd ..

9# Copy jmeter-master Dockerfile into jmeter-master directory and build image

[root@ip-10-23-14-197 jmeter-master]# vi Dockerfile (Copy Dockerfile in jmeter-master folder)

[root@ip-10-23-14-197 jmeter-master]# docker build -t jmeter-master .

Successfully built 6ada2e11e068

Successfully tagged JMeter-master: latest

{Note:To Remove unwanted containers use prune command

[root@ip-10-23-14-197 ~]# docker system prune -a }

10#.To check whether docker image is created run below command

[root@ip-10-23-14-197 jmeter-master]# docker images

REPOSITORY TAG IMAGE ID CREATED SIZE

jmeter-master latest 6ada2e11e068 9 seconds ago 311MB

11.Run below commad to Create container using Docker master image

[root@ip-10-23-14-197 ~]# docker run -dit -p 60000:60000 --name master01 jmeter-master /bin/bash

aaec0f61d8abf5ca05b011a5d21af80f5c363bf114818803cbe285752843c3c6

12.Check whethetr container is generated using “docker ps “ commands

[root@ip-10-23-14-197 ~]# docker ps

CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES

aaec0f61d8ab jmeter-master "/bin/bash" 4 seconds ago Up 3 seconds 0.0.0.0:60000->60000/tcp master01

13.#Login to docker container from where we need to execute jmeter test

root@ip-10-23-14-197 ~]# docker exec -it aaec0f61d8ab /bin/bash

root@aaec0f61d8ab:/# ls -ltr

total 0

drwxr-xr-x 2 root root 6 Nov 10 12:17 home

drwxr-xr-x 2 root root 6 Nov 10 12:17 boot

drwxr-xr-x 1 root root 41 Dec 24 00:00 var

drwxr-xr-x 1 root root 41 Dec 24 00:00 usr

drwxr-xr-x 2 root root 6 Dec 24 00:00 srv

drwxr-xr-x 3 root root 30 Dec 24 00:00 run

drwxr-xr-x 2 root root 6 Dec 24 00:00 opt

drwxr-xr-x 2 root root 6 Dec 24 00:00 mnt

drwxr-xr-x 2 root root 6 Dec 24 00:00 media

drwxr-xr-x 2 root root 34 Dec 24 00:00 lib64

drwxr-xr-x 1 root root 30 Dec 28 08:57 lib

drwx------ 1 root root 24 Dec 28 08:57 root

dr-xr-xr-x 13 root root 0 Dec 31 07:57 sys

drwxrwxrwt 1 root root 6 Jan 2 04:37 tmp

drwxr-xr-x 1 root root 63 Jan 2 04:37 sbin

drwxr-xr-x 1 root root 44 Jan 2 04:37 bin

drwxr-xr-x 3 root root 31 Jan 2 04:37 jmeter

drwxr-xr-x 2 root root 28 Jan 2 04:37 JMeterFiles

drwxr-xr-x 1 root root 66 Jan 2 05:21 etc

dr-xr-xr-x 112 root root 0 Jan 2 05:21 proc

drwxr-xr-x 5 root root 360 Jan 2 05:21 dev

14.# Go to JMeterFiles directory

cd JMeterFiles

root@aaec0f61d8ab:/# cd JmeterFiles/

15.# Run jmeter test

root@aaec0f61d8ab:/JMeterFiles# jmeter -n -t testdocker.jmx -Djava.rmi.server.hostname=10.23.14.197 -Dclient.rmi.localport=60000 -R 10.23.15.9

Parameters:

-n => non gui mode

-t => jmx script

- Djava.rmi.server.hostname =>Master machine ip

-Dclient.rmi.localport=60000 => Port to connect Slave machine (10,23,15.9)

-R 10.23.15.9 => Slave ip machine

Output:

Creating summariser <summary>

Created the tree successfully using testdocker.jmx

Configuring remote engine: 10.23.15.9

Starting remote engines

Starting the test @ Thu Jan 02 05:22:55 UTC 2020 (1577942575865)

Remote engines have been started

Waiting for possible Shutdown/StopTestNow/Heapdump message on port 4445

summary = 1 in 00:00:01 = 1.1/s Avg: 65 Min: 65 Max: 65 Err: 0 (0.00%)

Tidying up remote @ Thu Jan 02 05:22:58 UTC 2020 (1577942578251)

... end of run

# SLAVE NODE SETUP

16.# Login to remote server of Slave Machine and Switch to root user

sudo -i

17.# Make directory on Slave machine

root@ip-10-23-15-9 ~]# mkdir -p jmeter-slave/JmeterFiles

[root@ip-10-23-15-9 ~]# cd jmeter-slave/JMeterFiles/

[root@ip-10-23-15-9 JMeterFiles]# cd ..

[root@ip-10-23-15-9 jmeter-slave]# ls -ltrh

total 0

drwxr-xr-x 2 root root 6 Jan 2 04:39 JMeterFiles

18.# Copy JMeter-slave Dockerfile into JMeter-slave directory and build image

[root@ip-10-23-15-9 jmeter-slave]# vi Dockerfile (Copy dockerfile in jmeter-slave folder)

[root@ip-10-23-15-9 jmeter-slave]# ls -ltrh

total 4.0K

drwxr-xr-x 2 root root 6 Jan 2 04:39 JMeterFiles

-rw-r--r-- 1 root root 1.1K Jan 2 04:40 Dockerfile

[root@ip-10-23-15-9 jmeter-slave]# docker build -t jmeter-slave . (Build image)

Successfully built b13f7e871217

Successfully tagged jmeter-slave:latest

19.# Run below commad to start container of slave

[root@ip-10-23-15-9 jmeter-slave]# docker run -dit --name slave03 -e LOCALIP='10.23.15.9' -p 1099:1099 -p 50000:50000 jmeter-slave /bin/bash

f0c3546494640f14b370bfacd21effd07cd038eb5b32da7474e3e6e263f8acc5

Parameters in command:

-i =>starts an interactive session and

-t=>emulates a tty.

-d=>tells Docker to detach and run in the background.

--name slave => name of containers

-e LOCALIP='10.23.15.9'

-p 1099:1099 => first port stands for host port : second port is for container port

jmeter-slave ==>docker slave image

/bin/bash==> shell is assigned

20.To check whether slave container is generated run docker ps command

[root@ip-10-23-15-9 jmeter-slave]# docker ps

CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES

f0c354649464 jmeter-slave "/bin/sh -c 'jmeter-…" 3 seconds ago Up 2 seconds 0.0.0.0:1099->1099/tcp, 0.0.0.0:50000->50000/tcp, 60000/tcp slave03

20# When the test is started we can Check container live logs on the Slave machine using the below command: docker logs -f slave01

To check logs on Slave machine we need container id of slave machine:

[root@ip-10-23-15-9 jmeter-slave]# docker ps

CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES

f0c354649464 jmeter-slave "/bin/sh -c 'jmeter-…" 3 seconds ago Up 2 seconds 0.0.0.0:1099->1099/tcp, 0.0.0.0:50000->50000/tcp, 60000/tcp slave03

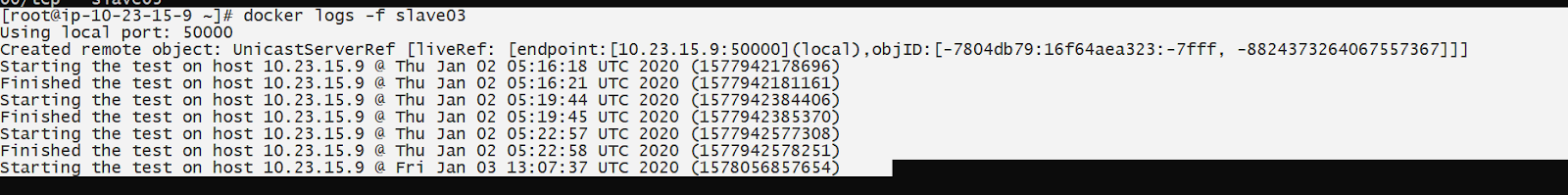

[[root@ip-10-23-15-9 jmeter-slave]# docker logs -f f0c354649464

Using local port: 50000

Created remote object: UnicastServerRef [liveRef: [endpoint:[10.23.15.9:50000](local),objID:[-7804db79:16f64aea323:-7fff, -8824373264067557367]]]

Starting the test on host 10.23.15.9 @ Thu Jan 02 05:16:18 UTC 2020 (1577942178696)

Finished the test on host 10.23.15.9 @ Thu Jan 02 05:16:21 UTC 2020 (1577942181161)

Starting the test on host 10.23.15.9 @ Thu Jan 02 05:19:44 UTC 2020 (1577942384406)

Finished the test on host 10.23.15.9 @ Thu Jan 02 05:19:45 UTC 2020 (1577942385370)

Starting the test on host 10.23.15.9 @ Thu Jan 02 05:22:57 UTC 2020 (1577942577308)

Finished the test on host 10.23.15.9 @ Thu Jan 02 05:22:58 UTC 2020 (1577942578251)

VII) JMeter Dashboard – Grafana/InfluxDB using Docker:

Lightweight integration of Grafana and InfluxDB, by using the Docker technology that can be used for monitoring and storing the test metrics of your performance scripts

Jmeter is a widely used open-source tool for testing but it lacks one feature that is analyzing performance test during execution
One of the solution is to use Grafana and InfluxDB.

Grafana is an open-source platform for time series analytics, which allows you to create real-time graphs based on time series data.
InfluxDB is the time series database that is used as a temporary metrics storage.

We had used two different containers. The first container runs Grafana for showing dashboards, while the second one runs InfluxDB for storing metrics.
Docker Compose is designed to combine multiple dockers in one standalone composition, which you can run through one command. This is very convenient when you need to run different containers together in integration
In our case, we need to run two different applications (Grafana and InfluxDB) and that's why it makes sense

Prerequisites

In order to use the prepared docker file, you need to have the following installed:

Docker – to spin up the containers with InfluxDB and Grafana. Installation steps here.
Docker Compose – to integrate the InfluxDB and Grafana containers together and have just one script to rule them all

STEPS:

Step1) Open the Console and Login to Aws Master machine

root@DEVOPS-LAP-07:~# ssh -i dist-test.pem ec2-user@10.23.14.197

[root@ip-10-23-14-197 ~]# less /etc/os-release

Step 2) Install Git on Aws machine

[root@ip-10-23-14-197 ~]# yum install git

Step 3) Download GrafanaInfluxDocker from Git Repo on Master machine

[root@ip-10-23-14-197 ~]# git clone https://github.com/QACodeDev/GrafanaInfluxDocker.git

Cloning into 'GrafanaInfluxDocker'...

remote: Enumerating objects: 13, done.

remote: Counting objects: 100% (13/13), done.

remote: Compressing objects: 100% (12/12), done.

remote: Total 13 (delta 0), reused 13 (delta 0), pack-reused 0

Unpacking objects: 100% (13/13), done.

Under this Repo, will find influx and grafana docker files and dockercompose yml file

[root@ip-10-23-14-197 ~]# ls

172.17.0.3 Dockerfile Finaltext.txt JMeterFiles base jmeterbase scripts.sh

DockerScript.jmx Dockerfile1 GrafanaInfluxDocker TestResults1.jtl jmeter-master jmetermaster

[root@ip-10-23-14-197 ~]# cd GrafanaInfluxDocker

[root@ip-10-23-14-197 GrafanaInfluxDocker]# ls

README.md configuration.env docker-compose.yml grafana influxdb

[root@ip-10-23-14-197 GrafanaInfluxDocker]#

Step 4)Install Docker compose using curl command (or https://docs.docker.com/compose/install/ )

In order to run the containers using Docker compose, you need to run this command from the main folder where the docker-compose.yml is located .In case “ GrafanaInfluxDocker”

This command will spin up Grafana and InfluxDB integrated together.

[root@ip-10-23-14-197 ~]# curl -L https://github.com/docker/compose/releases/download/1.25.1-rc1/docker-compose-`uname -s`-`uname -m` -o /usr/local/bin/docker-compose

% Total % Received % Xferd Average Speed Time Time Time Current

Dload Upload Total Spent Left Speed

100 617 0 617 0 0 2328 0 --:--:-- --:--:-- --:--:-- 2328

100 16.2M 100 16.2M 0 0 6188k 0 0:00:02 0:00:02 --:--:-- 7997k

Step 5) Run Docker -compose command

To run the docker compose in background mode, you need to pass the additional argument '-d

[root@ip-10-23-14-197 GrafanaInfluxDocker]# docker-compose up -d

After few minutes. If you see a similar output then you are good:

To stop the containers you can run the command:

Step 6:For Influxdb setup,we need to add Backend Listener in Jmeter script for communication between jmeter and influxdb

Parameters that need to be modified:

Enter influxdb url (Machine ip where influxdb is hosted)and Influxdb name

influxdbUrl

http://10.0.75.1:8086/write?db=jmeterdocker2

Give Application name to be monitored

application

dockerapp1

Give database table name in measurement section

measurement

jmeter

Summary needs to be set false

Step 7: In order to run InfluxDB queries, you need to login inside the InfluxDB docker container.

root@DEVOPS-LAP-07:~# ssh -i dist-test.pem ec2-user@10.23.14.197

Last login: Thu Jan 2 05:58:18 2020 from ip-10-32-50-88.us-west-2.compute.internal

(Note:dist-test.pem is a private key file which needs to be passed as a parameter to login aws machine)

First, you need to get the list of all docker containers running. Use this specified command and find the container ID related to the InfluxDB container (it should have the 'influxdb' string inside the container name):

[root@ip-10-23-14-197 ~]# docker ps

CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES

aaec0f61d8ab jmeter-master "/bin/bash" 39 minutes ago Up 39 minutes 0.0.0.0:60000->60000/tcp master01

e87df66db3bf grafanainfluxdocker_grafana "/app/entrypoint.sh" 42 hours ago Up 41 hours 0.0.0.0:3000->3000/tcp grafanainfluxdocker_grafana_1

519f48028084 grafanainfluxdocker_influxdb "/app/entrypoint.sh" 42 hours ago Up 41 hours 0.0.0.0:8086->8086/tcp grafanainfluxdocker_influxdb_1

Next to connect influx run the below command inside the influx container with the corresponding container id:

[root@ip-10-23-14-197 ~]# docker exec -it 519f48028084 influx

Connected to http://localhost:8086 version 1.3.1

InfluxDB shell version: 1.3.1

If everything is right,we can now execute influx db commands as below:

[root@ip-10-23-14-197 ~]# docker exec -it 519f48028084 influx

Connected to http://localhost:8086 version 1.3.1

InfluxDB shell version: 1.3.1

> create database jmeterdocker2; (///Create Database)

> show databases (//Show all database created)

name

----

influx

_internal

jmeterdocker2

> use jmeterdocker2 (//Use command to select created db for influx

Using database jmeterdocker2

> show measurements (//Show measurements is same as show tablename)

name

----

events

jmeter

> select * from jmeter (//select command to see all statistics during test)

time application avg count countError endedT hit max maxAT meanAT min minAT pct90.0 pct95.0 pct99.0 startedT statut transaction

---- ----------- --- ----- ---------- ------ --- --- ----- ------ --- ----- ------- ------- ------- -------- ------ -----------

1578046683386000000 dockerapp1 0 0 0 0 0 internal

1578046688370000000 dockerapp1 144.09999999999997 30 0 70 680 64 367.50000000000045 576.5999999999999 680 all all

1578046688372000000 dockerapp1 71.1 10 86 64 85.8 86 86 all logout

Step 8: Start Load test from Master and Slave docker container

root@aaec0f61d8ab:/JMeterFiles# jmeter -n -t RND_DockerGrafana.jmx -l testdocker3.jtl -Djava.rmi.server.hostname=10.23.14.197 -Dclient.rmi.localport=60000 -R 10.23.15.9

Master

Check logs on Slave machine

Step 9: Once the test is started, all JMeter test result data starts getting stored in influxdb which we can check under measurement “Jmeter”.

Run Show measurement command and you will be able to see stats like min,max,avg,error count

Step 10:To view Influxdb Db stats in a readable format and in graphical format with real live dashboards we used the Grafana tool.

Using url <Machine IP >:<Port no> ,we can access Grafana from any browser

<Machine ip> = IP address of Master machine 10.23.14.197

<Port no> =80

Step 11:To Access Grafana URL from different aws machines, we need to create rules for those particular IP source machines to communicate over port 80.

Here Source machines were:10.32.50.88 and 10.32.50.75

Grafana URL:<Master Machine chine IP> :<Commuincation Port> =>10.23.14.197:8-0

Step 12:For communication of Grafana and influxdb ,Add default influxdb data source in grafana

Add data source in grafana and select “Infludb” type and provide url of influxdb hosted achine
Provide same influxdb database name which is given in jmeter backend listener

Step 12:Next Step,To create Dashboard to View jmeter test data stored in infludb during load test.

We have some inbuilt dashboards,to fetch them we need to import dashboard id “4026”

Provide dashboard name and select DB name

Step 13. Once we import the dashboard we will be able to see a very informative dashboard providing all minute details like

a.Transaction name

b.Error Rate

c.Failed request

d.Response time

e.Throughput

(Note: We can customize the dashboard if we don't want to import an inbuilt dashboard)

NOW YOU ARE READY TO ANALYSE AND MONITOR JMETER TEST LIVE

MISCELLANEOUS:

I .To copy file on aws machine from local:

1.From local machine root to aws user

root@DEVOPS-LAP-07:~# scp -i dist-test.pem /mnt/c/Users/ssonawane/Desktop/RND_DockerGrafana.jmx ec2-user@10.23.14.197:~/

RND_DockerGrafana.jmx 100% 15KB 49.6KB/s 00:00

2.from user directory to root directory of aws machine

[root@ip-10-23-14-197 jmeter-master]# cp /home/ec2-user/RND_DockerGrafana.jmx .

[root@ip-10-23-14-197 jmeter-master]# ls

Dockerfile JMeterFiles RND_DockerGrafana.jmx

3.from root directory to docker containers

[root@ip-10-23-14-197 JMeterFiles]# docker cp RND_DockerGrafana.jmx aaec0f61d8ab:/JMeterFiles

[root@ip-10-23-14-197 JMeterFiles]# docker exec -it aaec0f61d8ab /bin/bash

root@aaec0f61d8ab:/# cd JMeterFiles/

root@aaec0f61d8ab:/JMeterFiles# ls -lrt

total 60

-rwxr-xr-x 1 root root 14699 Jan 2 04:33 testdocker.jmx

-rwxr-xr-x 1 root root 14698 Jan 2 06:28 IntegrationDockerJmeter.jmx

-rw-r--r-- 1 root root 9126 Jan 3 07:37 jmeter.log

-r-xr-xr-x 1 root root 14961 Jan 3 09:56 RND_DockerGrafana.jmx

THANK YOU

PerfRunners

Distributed Load Testing In JMeter Using Docker

VII) INFLUXDB and GRAFANA SETUP ON MASTER SLAVE MACHINE FOR ANALYSIS AND MONITORING JMETER TEST

Run tests on one server(Master-Slave on same machine IP different)

SCENARIO 1:

SCENARIO 2:

SCENARIO 3:

VII) JMeter Dashboard – Grafana/InfluxDB using Docker:

Lightweight integration of Grafana and InfluxDB, by using the Docker technology that can be used for monitoring and storing the test metrics of your performance scripts

Prerequisites

Leave a Comment

1 comment:

Total Pageviews

Popular Posts

Archives

Facebook

Tags

Recent Posts

Featured post

Distributed Testing In JMeter

Popular Posts

PerfRunners

Distributed Load Testing In JMeter Using Docker

VII) INFLUXDB and GRAFANA SETUP ON MASTER SLAVE MACHINE FOR ANALYSIS AND MONITORING JMETER TEST

Run tests on one server(Master-Slave on same machine IP different)

SCENARIO 1:

SCENARIO 2:

SCENARIO 3:

VII) JMeter Dashboard – Grafana/InfluxDB using Docker:

Lightweight integration of Grafana and InfluxDB, by using the Docker technology that can be used for monitoring and storing the test metrics of your performance scripts

Prerequisites

Related Posts

Leave a Comment

1 comment:

Total Pageviews

Popular Posts

Archives

Facebook

Tags

Recent Posts

Featured post

Distributed Testing In JMeter

Popular Posts
